downtube hailong / polly battery
36V/48/52V battery
Customizable lithium battery packs are the perfect solution for ebike manufacturers and wholesalers who want to stay ahead of the competition.
Our lithium battery packs are assembled with high-quality lithium-ion cells, stable quality BMS and advanced manufacturing techniques, so you can be confident in the safety and longevity.
With our expert engineering and design team, we can create custom Hailong battery packs that meet your specific requirements and provide you with a unique competitive advantage in the market.
Optional Cell: 18650/21700 Samsung, LG, Panasonic, EVE, LISHEN, DLG, CHAM，Sinowatt etc.
Basic specifications
| Model | SGP- dolphin 36V 14Ah |
|---|---|
| Nominal Voltage | 36V |
| Nominal Capacity | 14Ah |
| Rated Energy | 504Wh |
| assembly | 10S5P Panasonic NCR18650GA 3500mah |
| Maximum Charge Voltage | 42V |
| Standard Charge Current | 3A |
| Maximum Charge Current | 14A |
| Maximum Continuous Discharge Current | 25A or customized |
| Maximum Peak Discharge Current (2 seconds) | 75A or customized |
| Discharge Cut-off Voltage | 25V |
| suitable motor | 500W or customized |
| Charge Temperature | 0~+45℃ |
| Discharge Temperature | -20~+60℃ |
| Cycle Life (25℃, 80%DOD) | >1000 times |

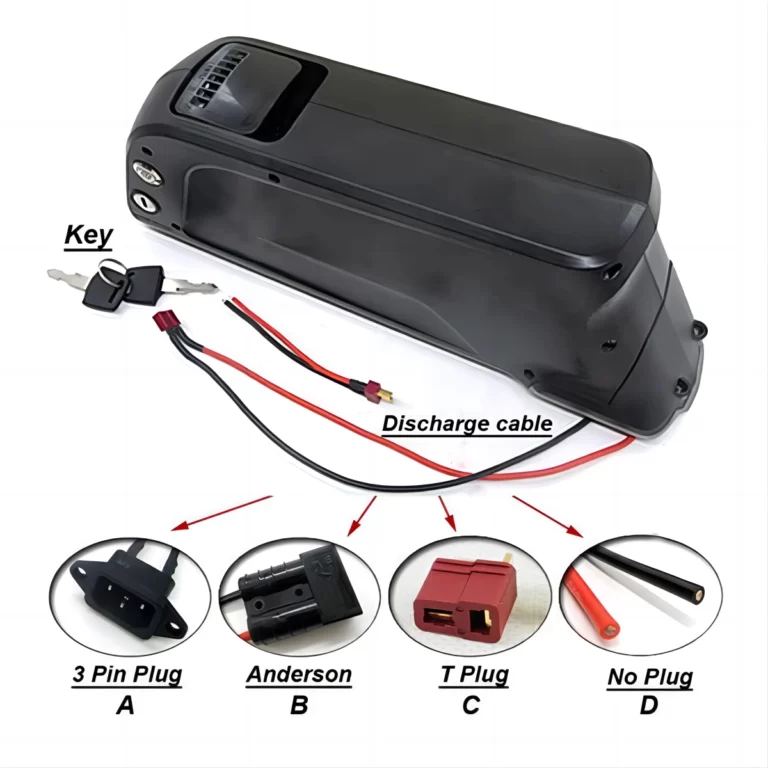

| discharge line | customized as requested |
| charge connector | DC2.1 or 3pin higher current |

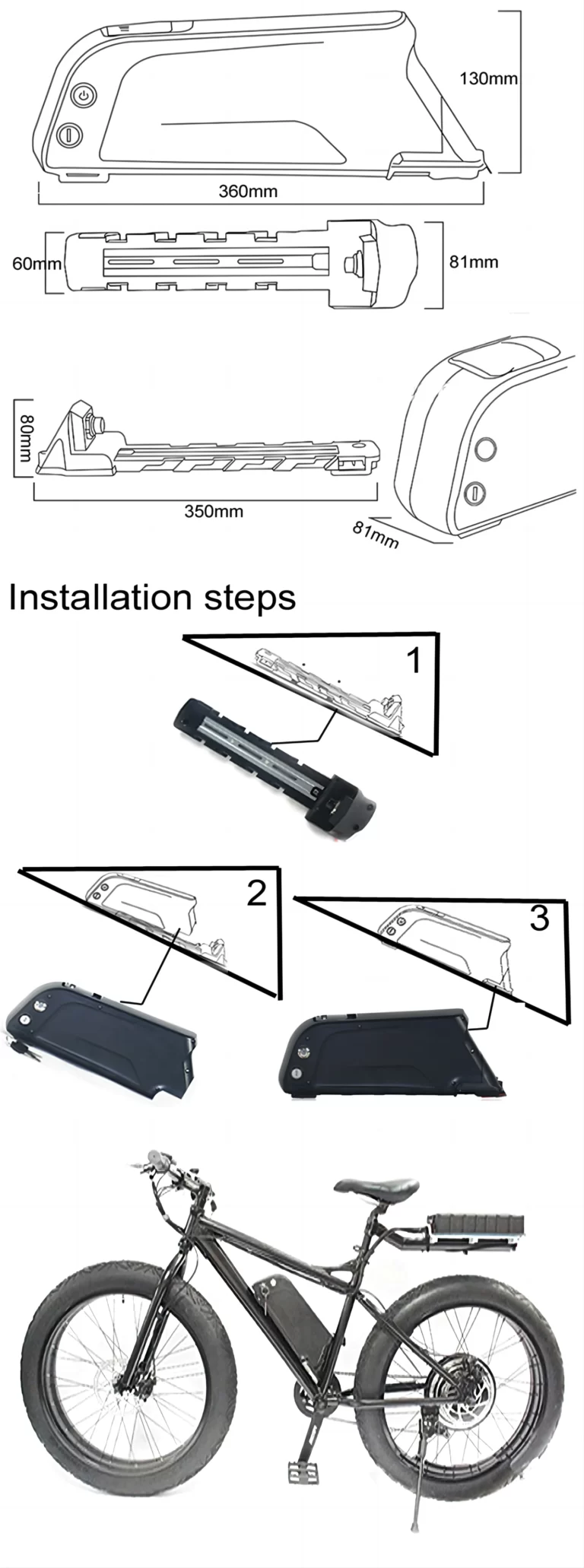

| Dimensions(mm) | 360*132*82mm |
| Design life | >5 years |

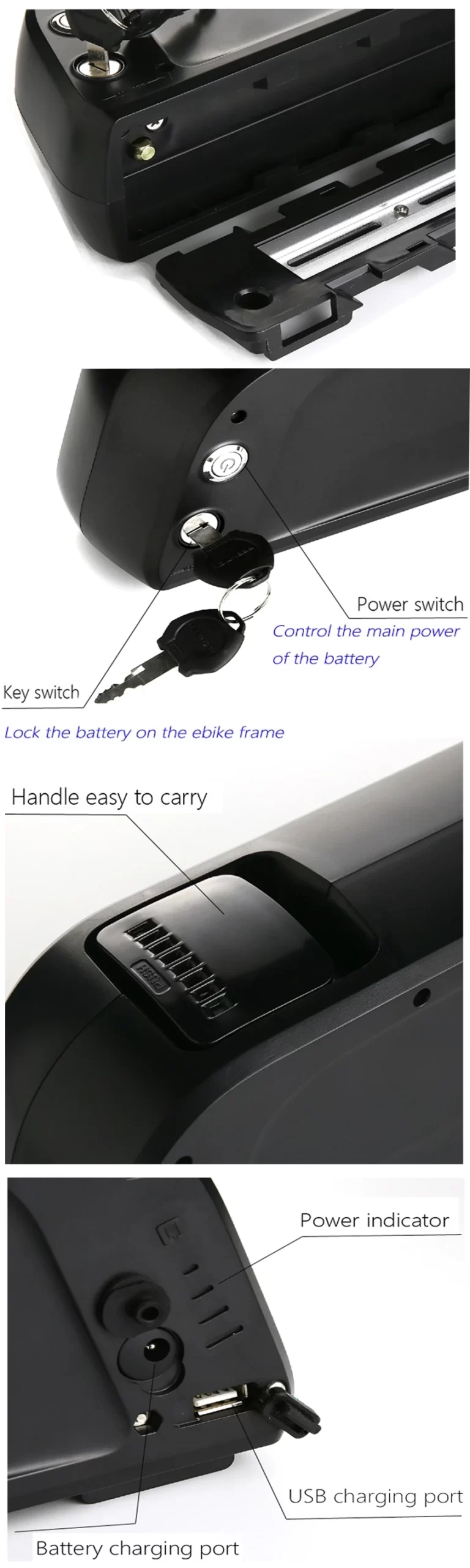

Product details
Different dimensions
Product video
Looking for reliable and high-performance battery packs for your e-bikes? Look no further than our Tiger Shark Battery packs, specifically designed for bicycle manufacturers and wholesalers like you.
Need help or have questions? We’re just a click or call away. Contact us today and let us help you find the right solution for your needs.
