Downtube Kettle / bottle battery
24V/36V battery
Customizable lithium battery packs are the perfect solution for ebike manufacturers and wholesalers who want to stay ahead of the competition.
Our lithium battery packs are assembled with high-quality lithium-ion cells, stable quality BMS and advanced manufacturing techniques, so you can be confident in the safety and longevity.
With our expert engineering and design team, we can create custom Hailong battery packs that meet your specific requirements and provide you with a unique competitive advantage in the market.
Optional Cell: 18650/21700 Samsung, LG, Panasonic, EVE, LISHEN, DLG, CHAM，Sinowatt etc.
Basic specifications
| Model | SGP- kettle 36V 10.5Ah |
|---|---|
| Nominal Voltage | 36V |
| Nominal Capacity | 10.5Ah |
| Rated Energy | 378Wh |
| assembly | 10S3P samsung 35E 3500mah |
| Maximum Charge Voltage | 42V |
| Standard Charge Current | 2A |
| Maximum Charge Current | 10A |
| Maximum Continuous Discharge Current | 15A or customized |
| Maximum Peak Discharge Current (2 seconds) | 45A or customized |
| Discharge Cut-off Voltage | 25V |
| suitable motor | 250W or 350W or customized |
| Charge Temperature | 0~+45℃ |
| Discharge Temperature | -20~+60℃ |
| Cycle Life (25℃, 80%DOD) | >1000 times |
| discharge line | customized as requested |
| charge connector | DC2.1 |
| Dimensions(mm) | 300*77mm (without base) 320*86mm (with base) |
| Design life | >5 years |

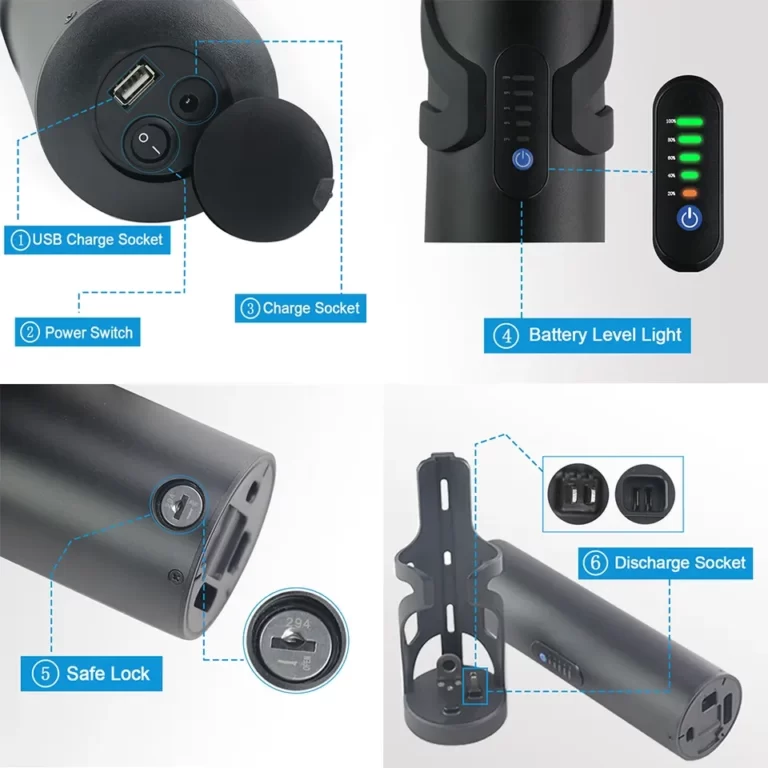

Product details
Different dimensions
Product video
Discover the Convenience and Power of Our Bottle Battery

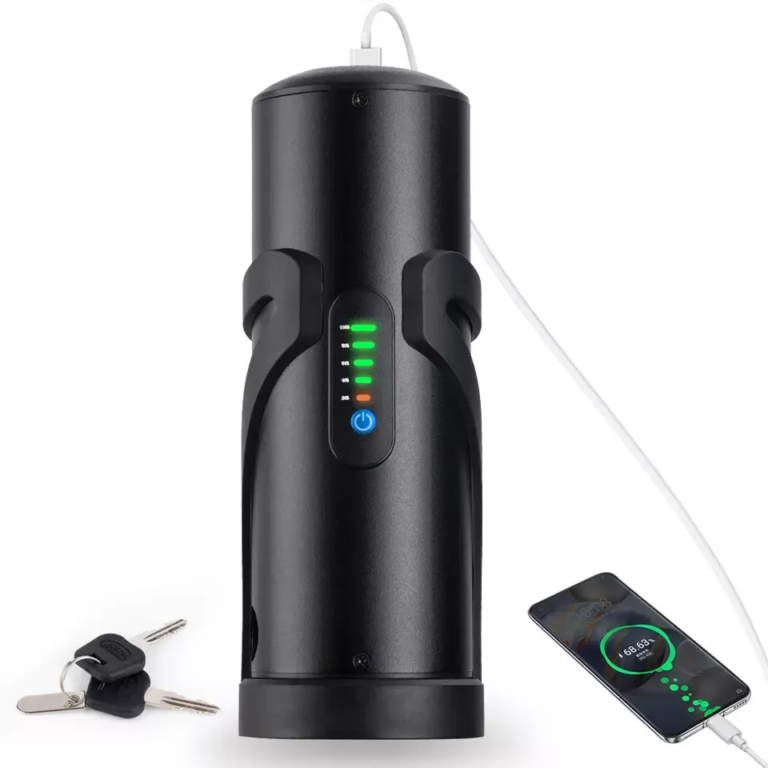

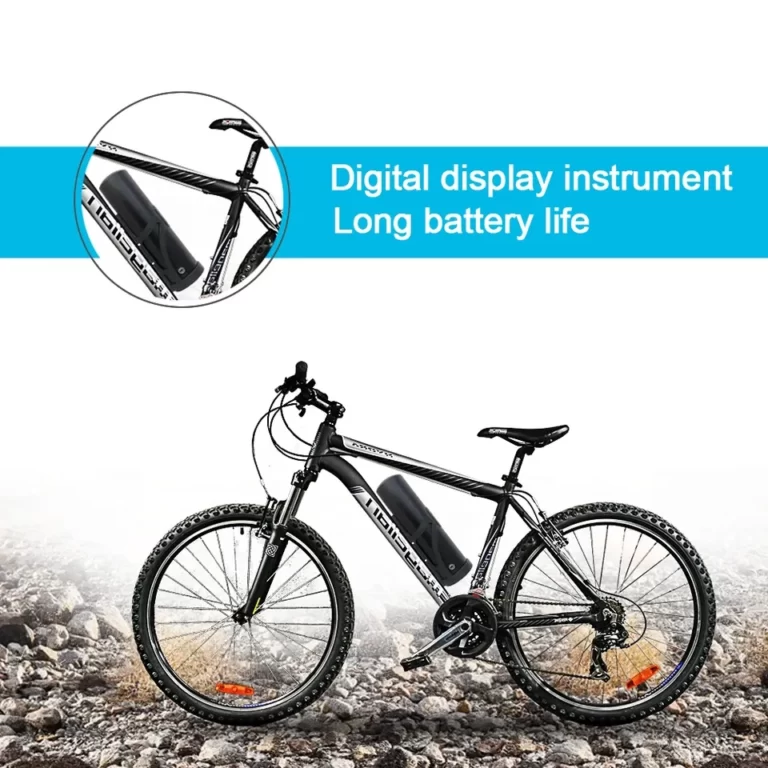

Our bottle battery is portable and convenient, compact and lightweight, making it easy to install and remove from your e-bike, and also allowing you to charge it easily and take it with you on the go.
Need help or have questions? We’re just a click or call away. Contact us today and let us help you find the right solution for your needs.
