downtube hailong / polly battery
36V/48/52V battery
Customizable lithium battery packs are the perfect solution for ebike manufacturers and wholesalers who want to stay ahead of the competition.
Our lithium battery packs are assembled with high-quality lithium-ion cells, stable quality BMS and advanced manufacturing techniques, so you can be confident in the safety and longevity.
With our expert engineering and design team, we can create custom Hailong battery packs that meet your specific requirements and provide you with a unique competitive advantage in the market.
Optional Cell: 18650/21700 Samsung, LG, Panasonic, EVE, LISHEN, DLG, CHAM，Sinowatt etc.
Basic specifications
| Model | SGP- Rear rack 48V 20Ah - sky05 |
|---|---|
| Nominal Voltage | 48V |
| Nominal Capacity | 20Ah |
| Rated Energy | 960Wh |
| assembly | 13S4P samsung 50E 5000mah |
| Maximum Charge Voltage | 54.6V |
| Standard Charge Current | 4A |
| Maximum Charge Current | 20A |
| Maximum Continuous Discharge Current | 30A or customized |
| Maximum Peak Discharge Current (2 seconds) | 90A or customized |
| Discharge Cut-off Voltage | 32.5V |
| suitable motor | 750W or 1000W or customized |
| Charge Temperature | 0~+45℃ |
| Discharge Temperature | -20~+60℃ |
| Cycle Life (25℃, 80%DOD) | >1000 times |
| discharge line | customized as requested |
| charge connector | 3pin |
| Dimensions(mm) | 348*87*133mm (without controller) 348*141*133mm (with controller) |
| Design life | >5 years |

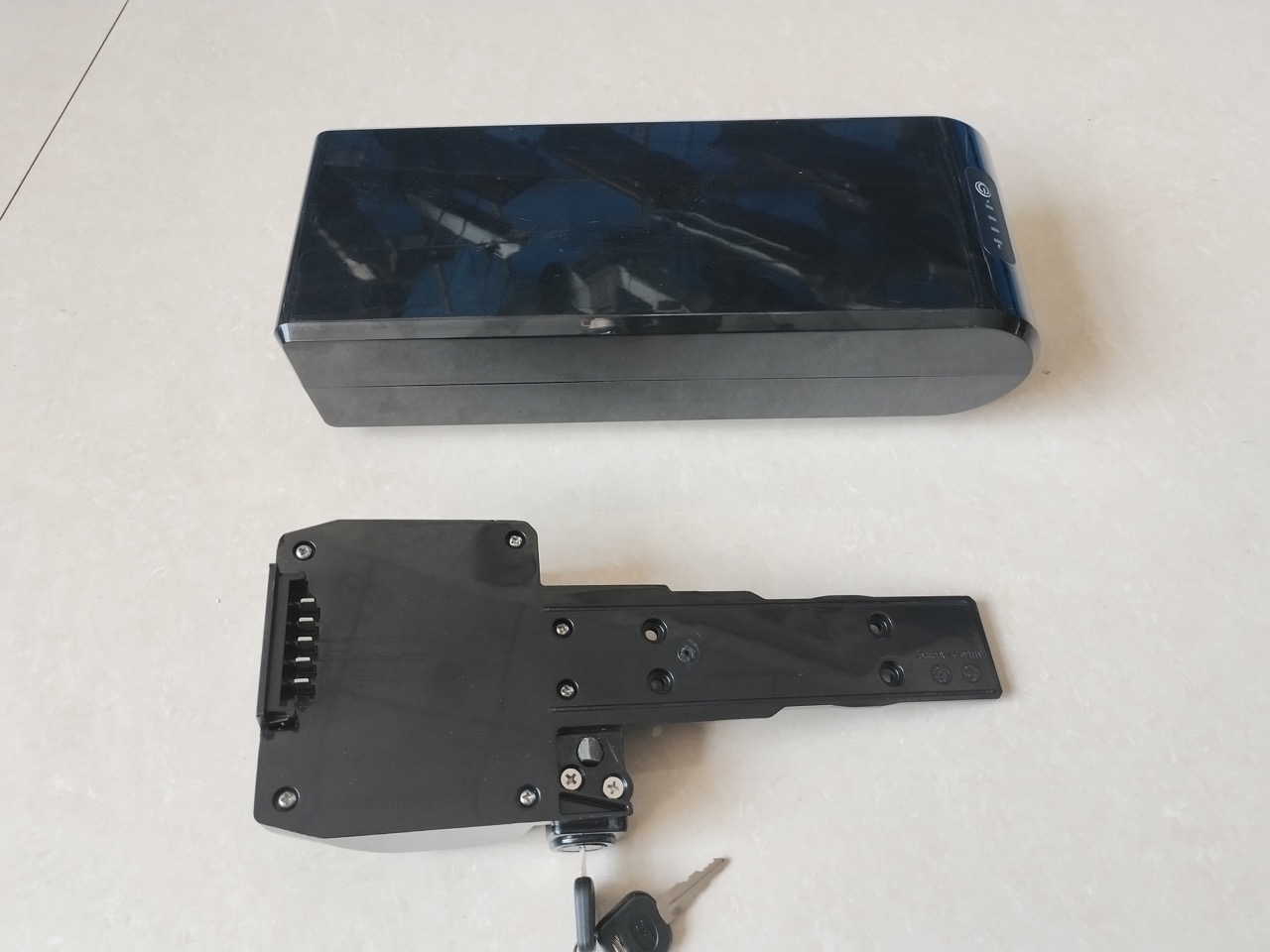

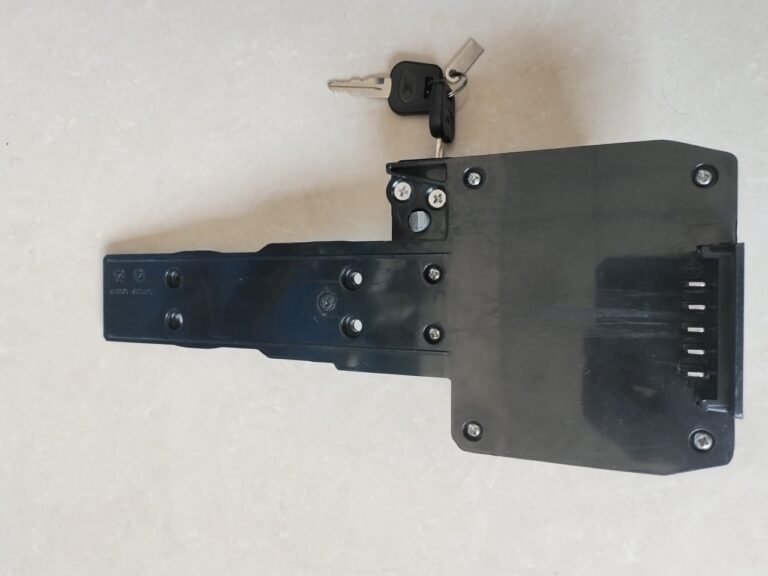

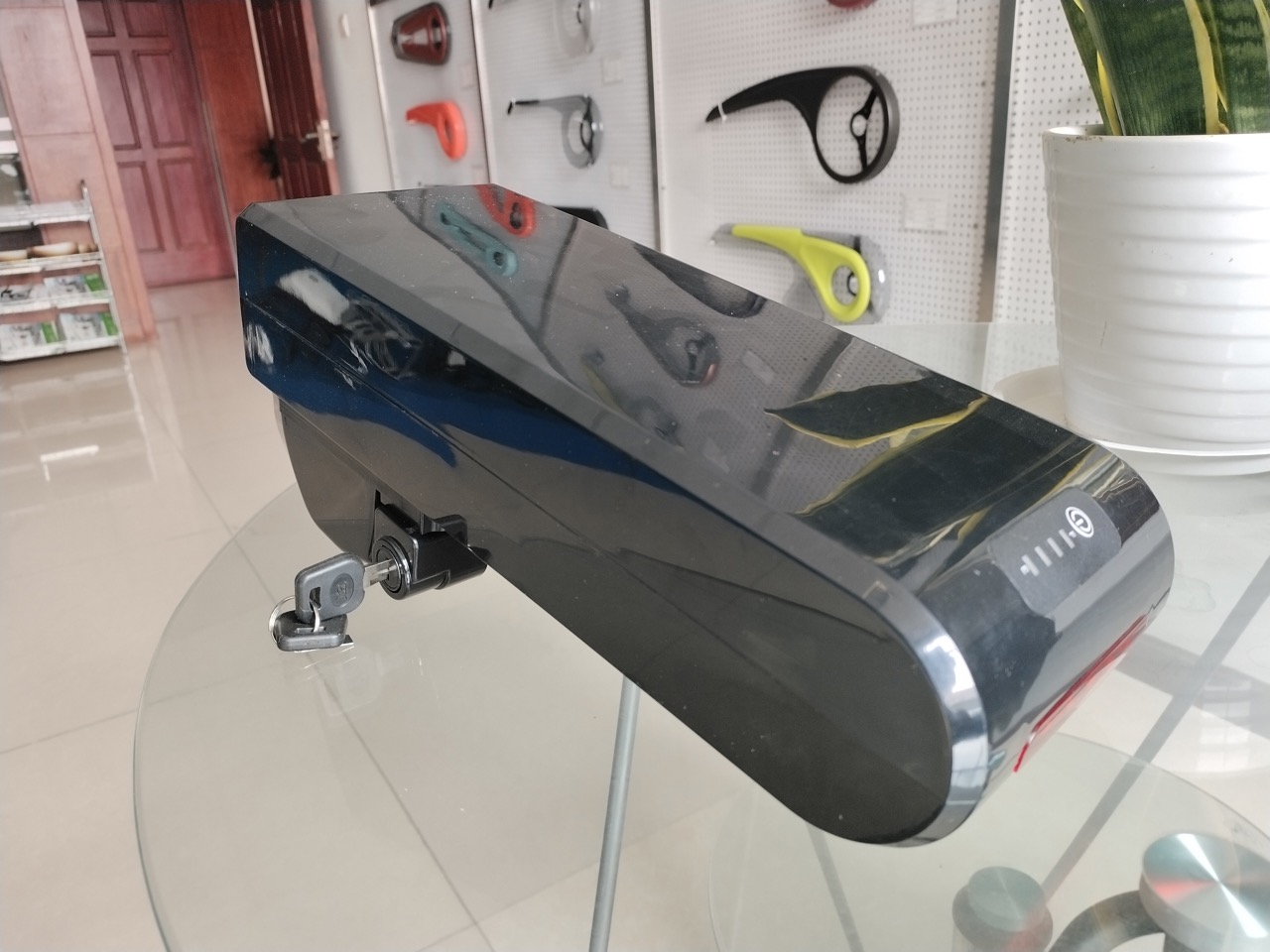

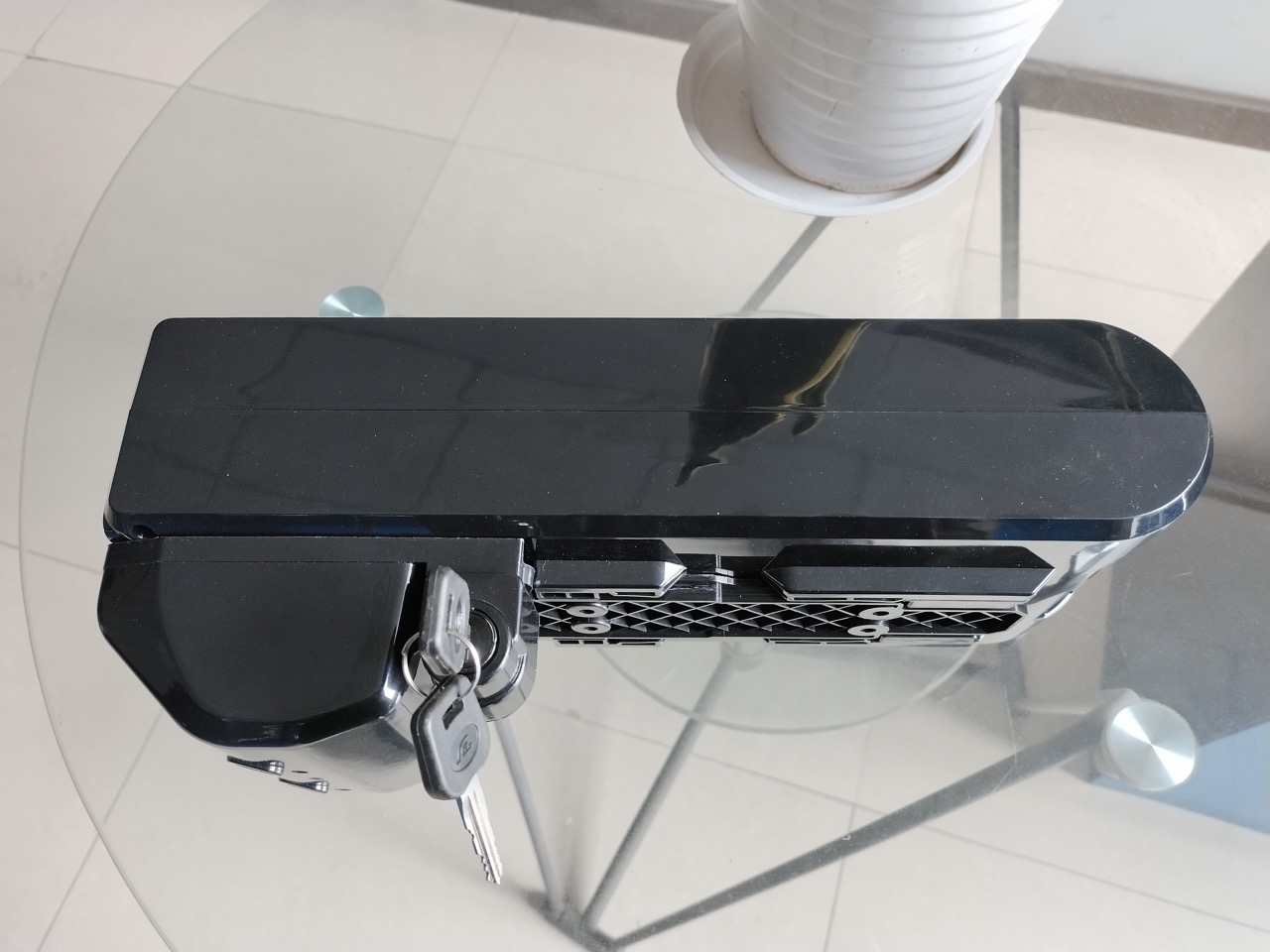

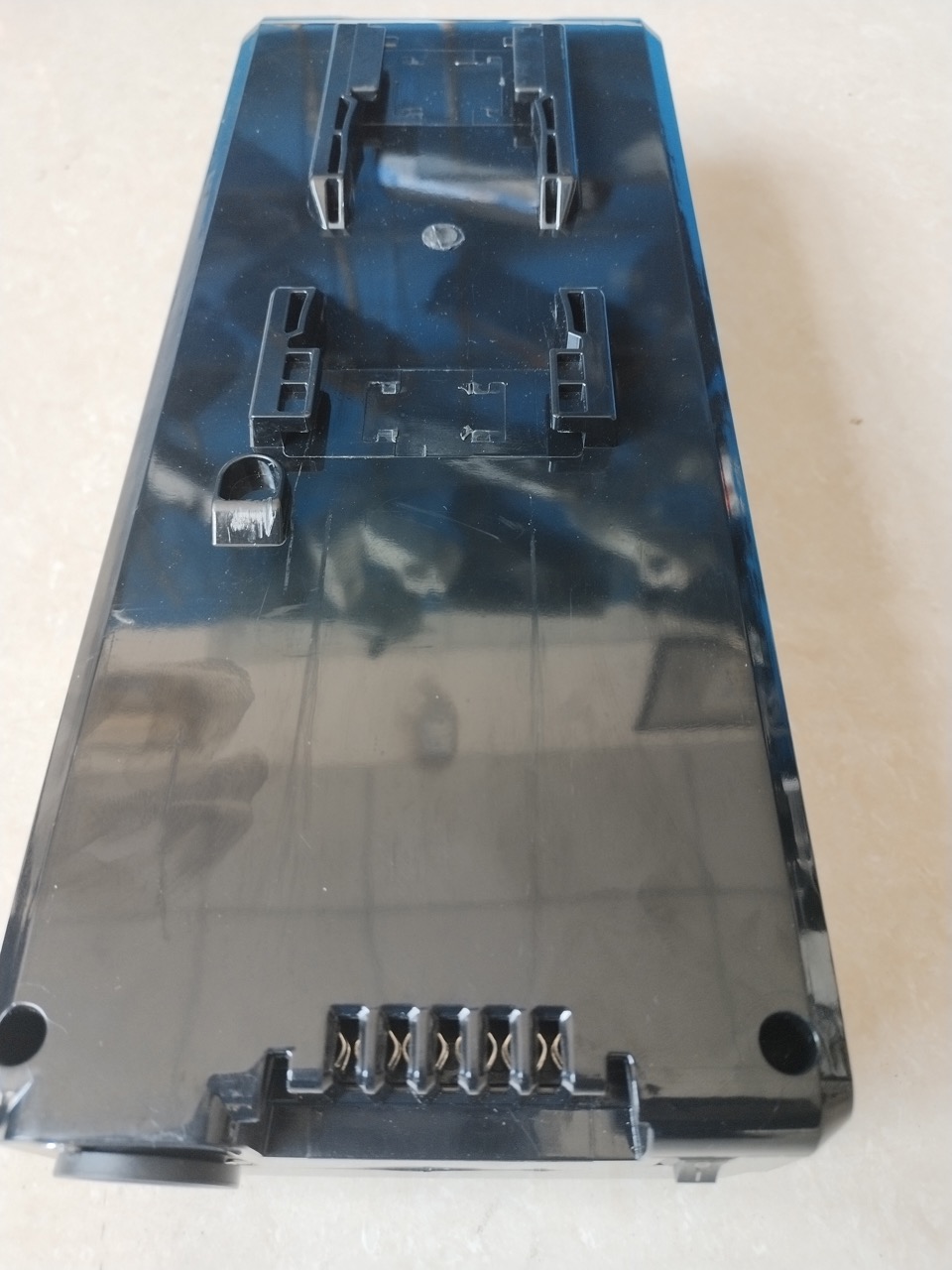

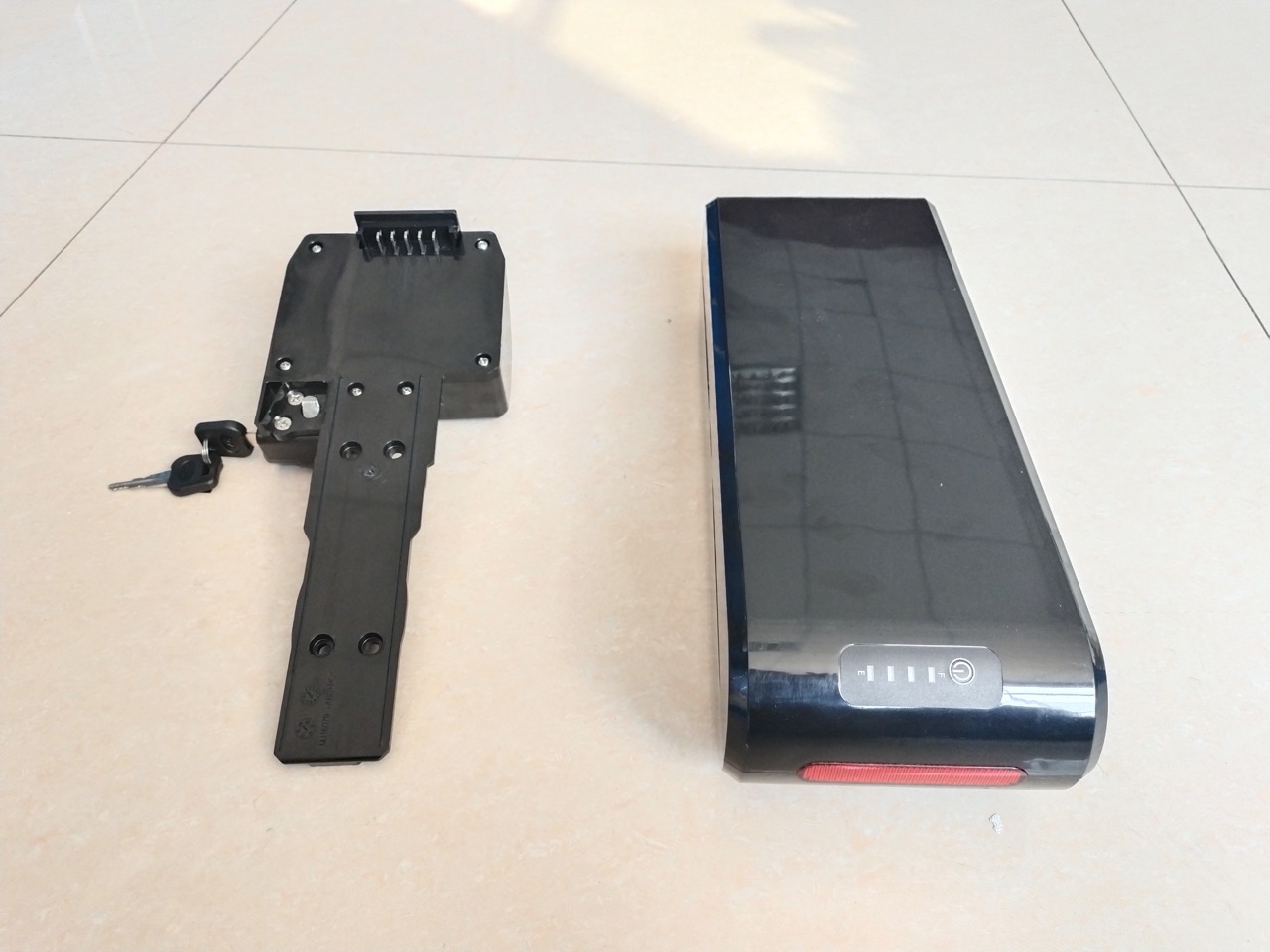

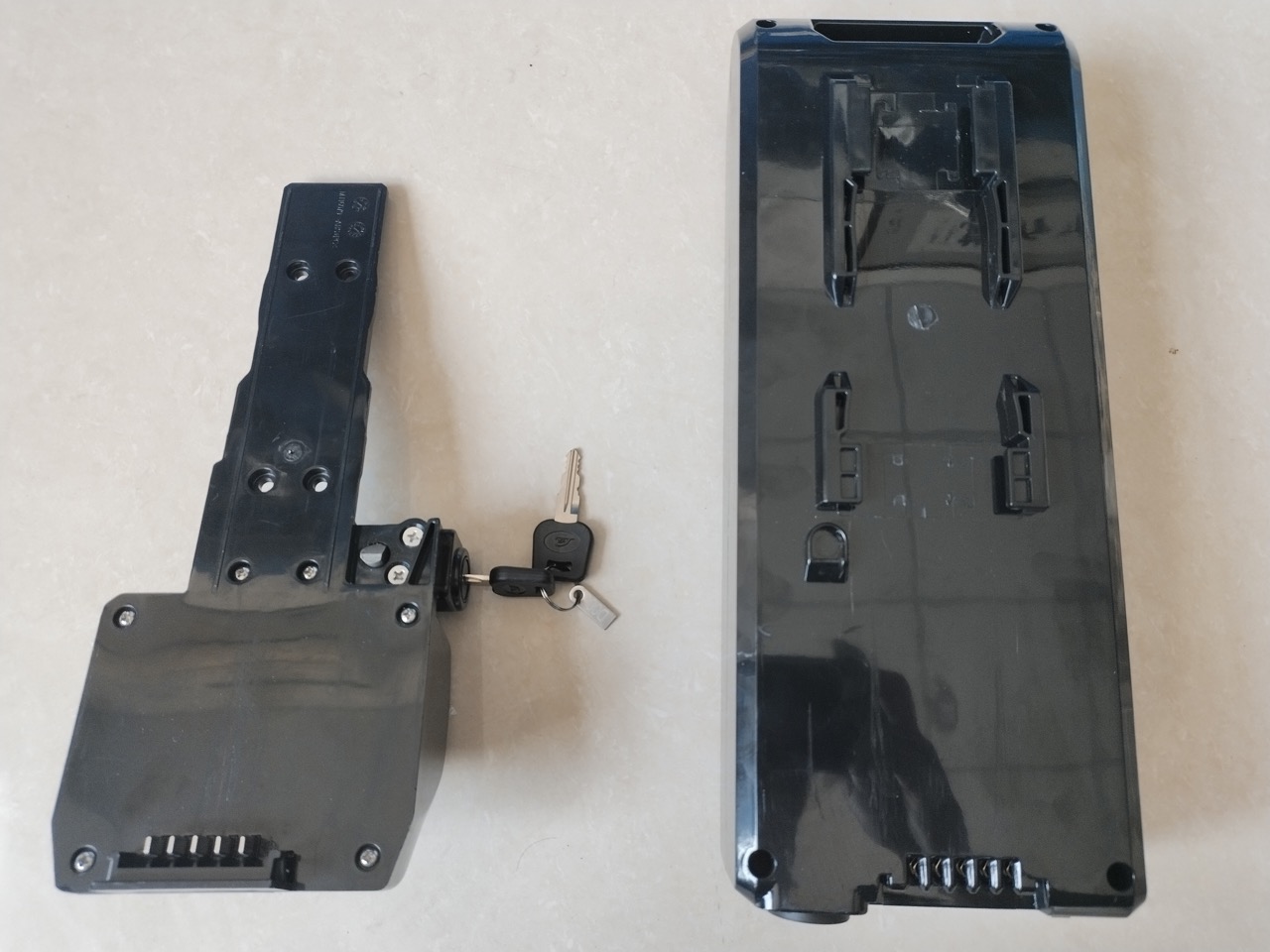

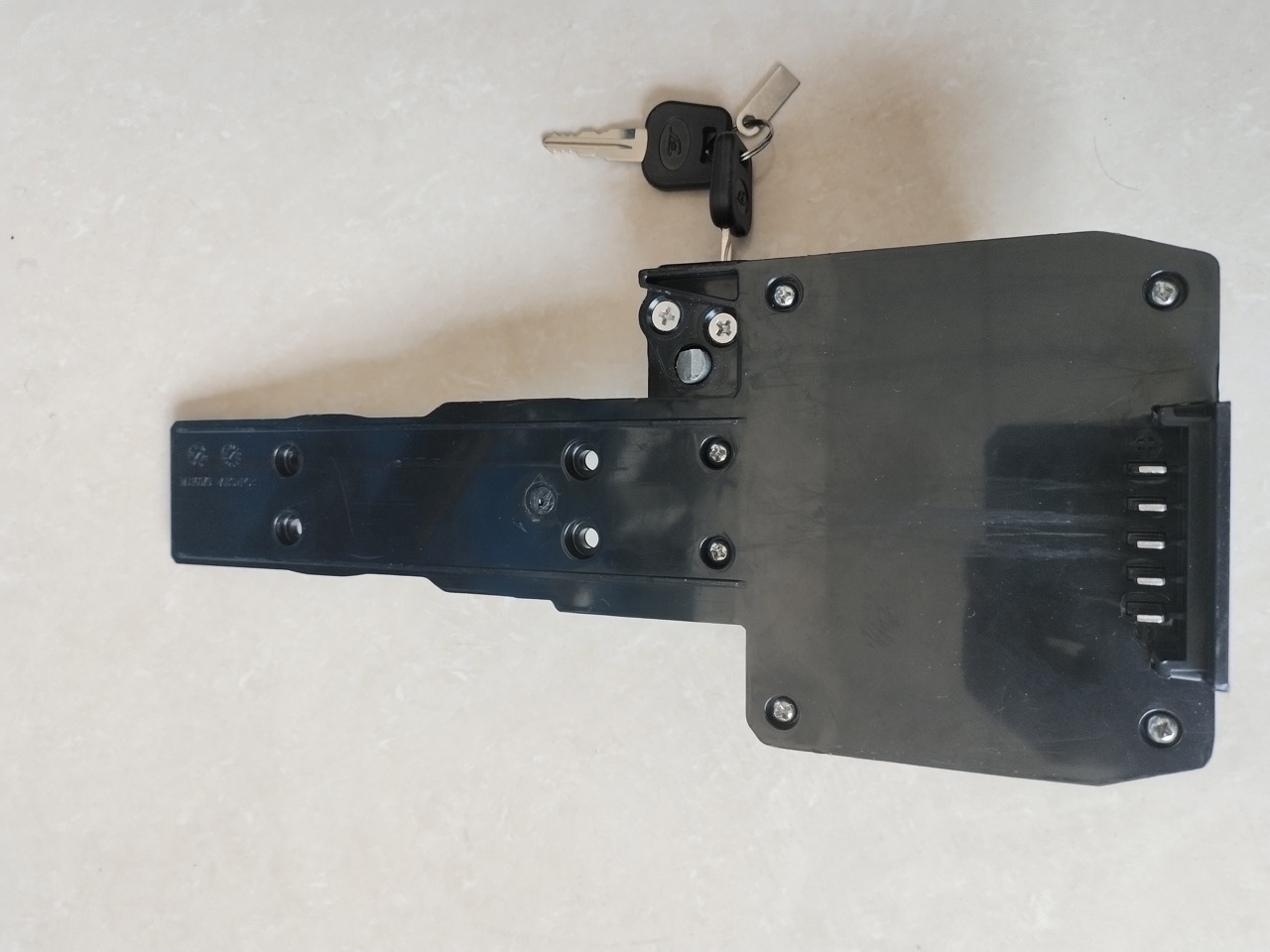

Product details

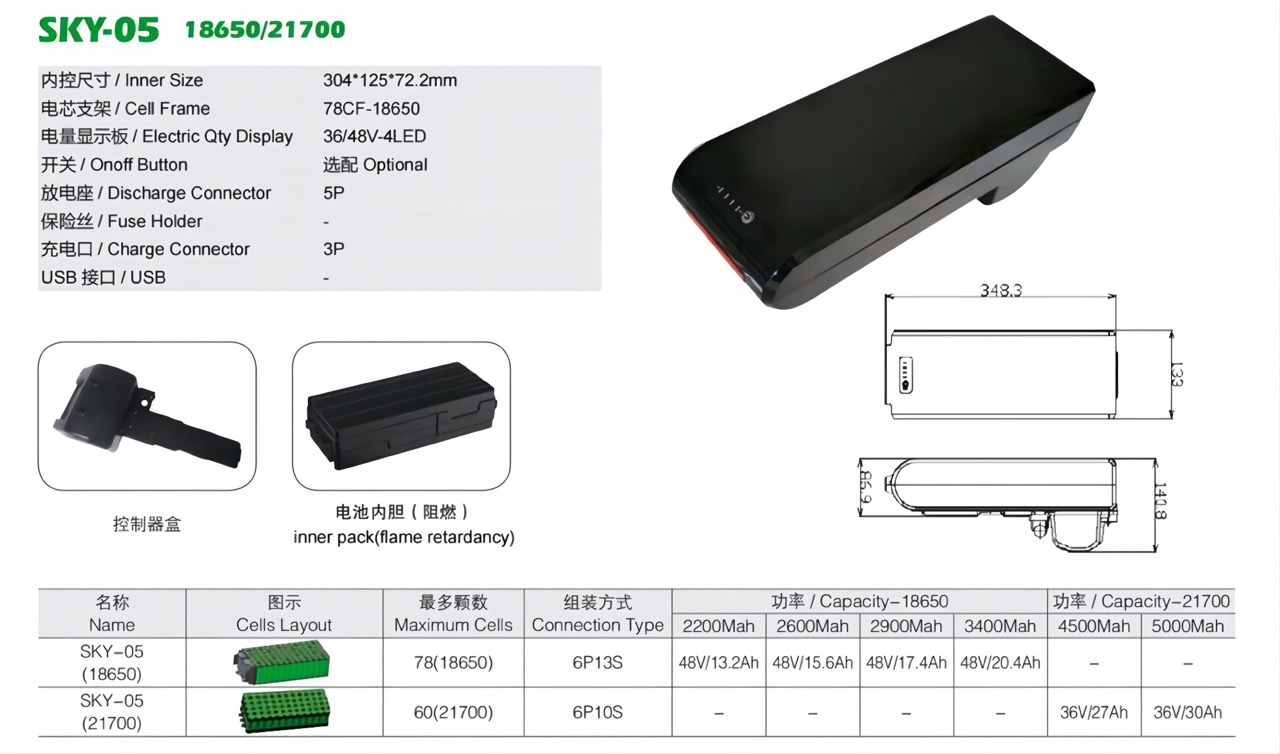

Different dimensions

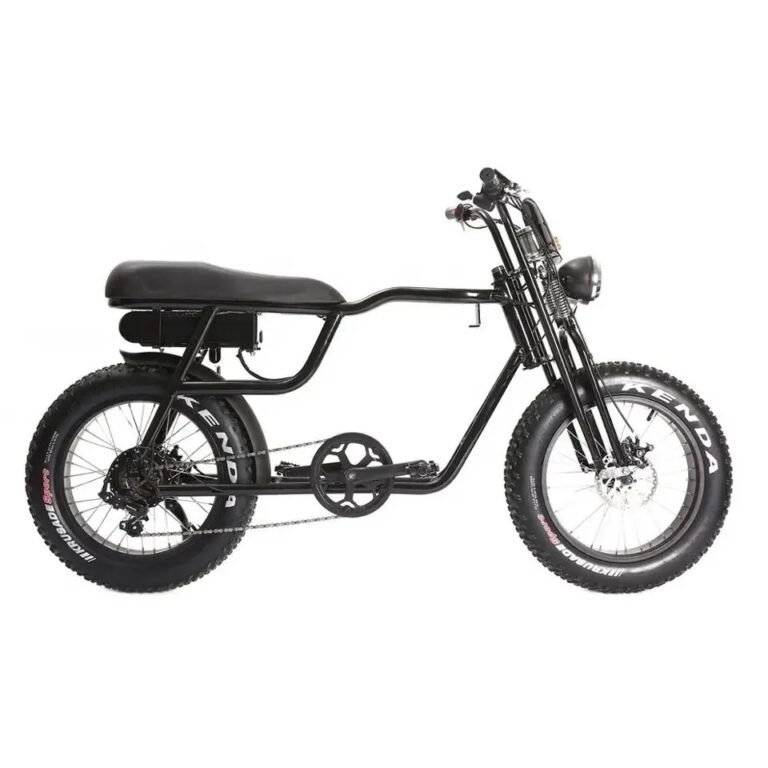

Product Application
Thanks to its large capacity, this battery pack can power your fat ebike for miles on end. Whether you’re commuting to work or exploring the great outdoors, our Rear Rack sky-05 Battery is the perfect partner for your ebikes
